    Low E Glass

    Low Emissivity glass (Low-E glass) glass provides excellent performance in situations where temperature separation is desired. Low-E is used to help meet energy efficiency requirements by blocking UV light and providing heat insulation.

    Thickness:

    3 mm -19 mm

    Sizes:

    1830*2240mm, 2134*3300mm, 2250&3300mm, 2440*3300mm, etc.

    Coating types:

    Online coating and offline soft coating

    Offline Low-E glass types:

    Single silver high transmittance, single silver high shading, and Double silver, etc.

    Code Compliance:

    CHINA GB/T18915.1-2002; UK BS6206:1981; USA ANSIZ97.1; AUS AS/NIS 2208-1996

    Send Inquiry

    Low Emissivity (Low-E) glass provides excellent performance in situations where temperature separation is desired. Low-E is used to help meet energy efficiency requirements by blocking UV light and providing heat insulation. This is done with a special thin-film metallic or oxide coating which prevents the passage of short-wave solar energy and also prevents long-wave energy produced by heating systems and lighting from escaping.

    Wallkingdon Glass offers three types of low-E coated glasses: Single silver Low-E /Double silver Low-E / Triple silver Low-E. As the China Low-E glass supplier, Wallkingdon glass has become the leading company in China glass industry.


    Low-e Coating Performance Measures

    Low-e coatings are applied to the various surfaces of insulating glass units. Whether a low-e coating is considered passive or solar control, they offer improvements in performance values. The following are used to measure the effectiveness of glass with low-e coatings:

    U-Value is the rating given to a window based on how much heat loss it allows.

    Visible Light Transmittance is a measure of how much light passes through a window.

    Solar Heat Gain Coefficient is the fraction of incident solar radiation admitted through a window, both directly transmitted and absorbed & re-radiated inward. The lower a window's solar heat gain coefficient, the less solar heat it transmits.

    Light to Solar Gain is the ratio between the window's Solar Heat Gain Coefficient (SHGC) and its visible light transmittance (VLT) rating.


    Here's how the coatings measure up by minimizing the amount of ultra-violet and infrared light (energy) that can pass through glass without compromising the amount of visible light that is transmitted.

     low e coatings

    Advantages of Low E Glass:

    Low-E glass sounds like it could be a useful tool for your home, but why should you spend the extra money? When your windows have Low-E glass installed, you’ll gain the following benefits:

    Furnishing protection:

    One use of Low-E glass is filtering out harmful UV light. Not only is UV damaging for your health, but it also harms your furniture, causing fabrics to fade and deteriorating the quality of materials and flooring.

    Improved window durability: The added layer in your window, although thin, will allow for extra durability, reducing chances of scratching or breakage.

    Increased energy efficiency:

    With Low-E glass, your home will have added insulation, which will result in less heat transference from your interior to the outside. The reduction of heat loss will improve energy efficiency throughout your home. These low-emissivity windows can reduce energy losses by 30 to 50 percent.


    Applications of Low-E Glass:

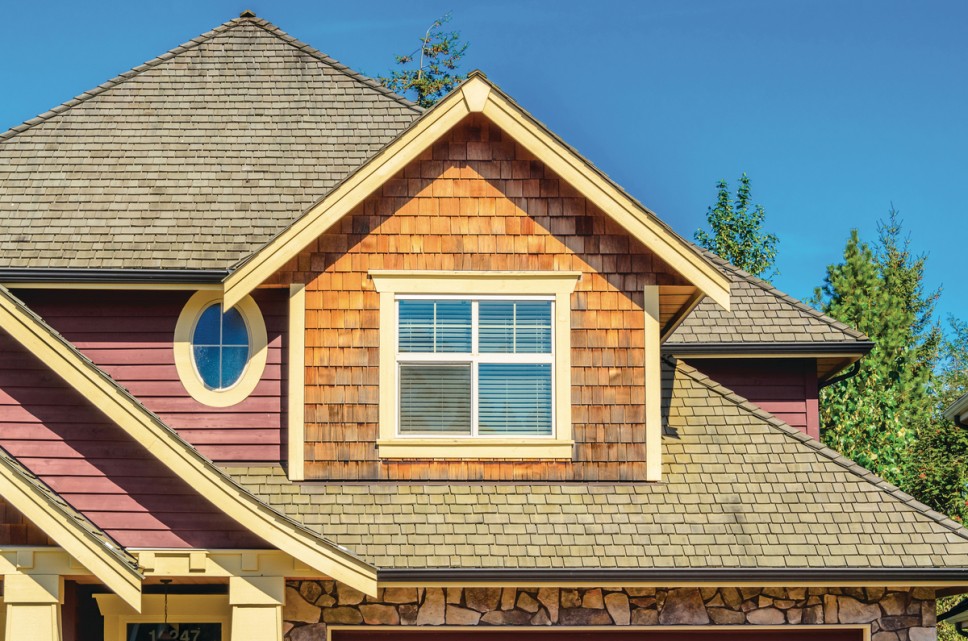

    Home

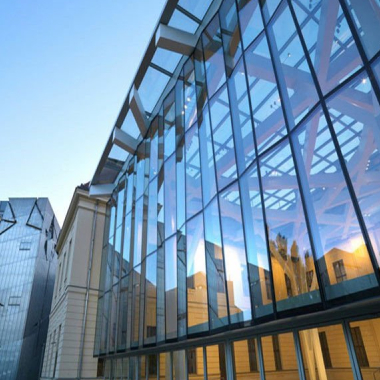

    Building

    Cars, Trucks and Buses


    Frequently asked Questions:

    1. OEM/ODM Service

    Our professional R&D dept. can develop different products for different target prices and different requirements.

    2. Free sample service

    Samples can be free but You only need to cover the sample courier fee. Sample which we have in stock, will be sent out within 3 working day.

    OEM sample will be sent out within 7 working days.

    3. Can you do our design?

    Of course, your customized design is available.

    4. Quality control

    We have a strict quality control system, Professional QC team.

    5. What's the universal lead-time for order delivery?

    Formal production: 10-40 days after PO confirmed and based on the total qty.


    Low-E Glass Price

    Price mainly consists of two parts, transportation and raw materials, we quote according to your specific volume and product requirements of the specifications, there are related project information consulting can also contact us via enquiry@wallkingdonglass.com



    Low-E Glass Supplier

    Wallkingdon Glass is a leading glass supplier in China for architectural and interior glass and offers a variety of low-e glass products to satisfy a wide range of applications.

    If you have any question for low-e glass , pls kindly contact us via enquiry@wallkingdonglass.com






    Learn more about designing custom decorative glass to bring a stylistic flair, creative accents, and privacy into your home or business! Call today and speak to a Jones glass expert for pricing or for more information on our custom decorative glass windows, doors, and other features. Request your free estimate and a free on-site consultation on our webiste.

    Hot Tags: Low E Glass, manufacturers, suppliers, factory, Customized

    Specifications:

    Thickness: 3 mm -19 mm

    Sizes: 1830*2240mm, 2134*3300mm, 2250&3300mm, 2440*3300mm, etc.

    Coating types: Online coating and offline soft coating

    Offline Low-E glass types: Single silver high transmittance, single silver high shading, and Double silver, etc.

    Code Compliance: CHINA GB/T18915.1-2002; UK BS6206:1981; USA ANSIZ97.1; AUS AS/NIS 2208-1996
