    Insulated Glass
    • Insulated Glass
    • Insulated Glass
    • Insulated Glass

    Insulated Glass

    Insulating Glass (IG) units are used in essentially all exterior building applications, including vertical glazing, sloped glazing, overhead glazing and skylights, and also in both vision and spandrel (nonvision) areas.

    Thickness:

    5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc

    Max Size:

    3300mm x 10000mm (except for manual production) Min Size: 180mm x 350mm

    Air or argon spacer gap:

    6mm, 9mm, 12mm, 15mm, 16mm etc

    Glass Option:

    Annealed Float glass, Low-E Glass, Tinted Glass, Reflective  Glass, Laminated Glass, Tempered Glass, Silkscreened Glass etc

    Glass Color:

    Clear, Ultra Clear( low iron), light blue, Ford blue, dark blue, ocean blue,  light gray, blue gray, light green, gold, bronze etc.

    Code Compliance:

    GB/T 11944  ASTM C1172  EN1279  JIS R3205  AS/NZS4666


    Send Inquiry

    By combining Low-E coatings, standard and high performance tinted glass, reflective coatings, silk-screened patterns, laminated glass products and more, a wide variety of insulating glass configurations are available to satisfy a wide range of performance and aesthetic requirements. IG units can be fabricated to meet state energy and safety codes, sound control and seismic requirements, impact, bullet, hurricane and blast resistance requirements. IG units can be designed to reduce heat loss and solar heat gain entering the building, with a minimal reduction of visible light transmittance.

    insulated glass

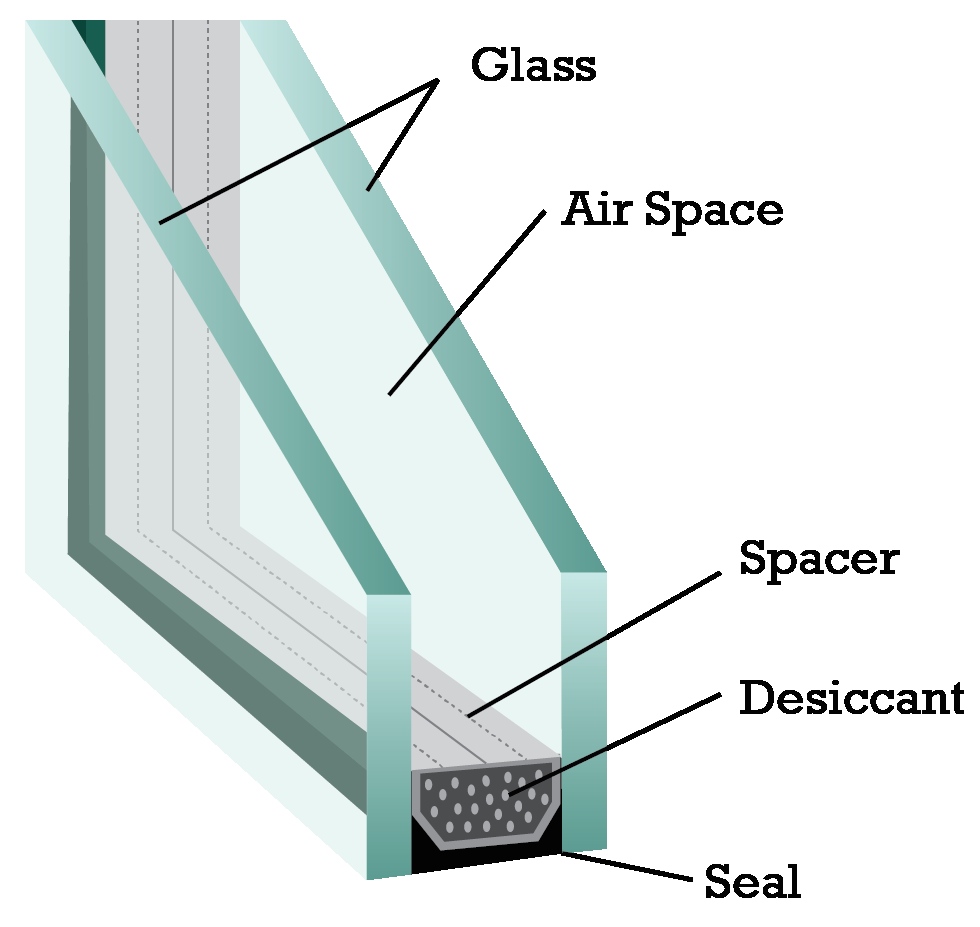

    Insulating glass units are fabricated according to project specifications. IG units can be constructed using a large variety of glass products to achieve desired aesthetics, meet design criteria, safety codes and/or to improve solar control and thermal performance.

    Glass options include clear, low iron, Low-E's, standard or high performance (spectrally selective) tints, reflective, silk-screened, spandrel, laminated, decorative and wired glass. The glass lites of an IG unit can be annealed, heat-strengthened, tempered or laminated.

    As the China Insulatedglass supplier, Wallkingdon glass has become the leading company in China glass industry.

    insulation glass


    Insulated Glass Application:

    Insulating Glass (IG) units are used in essentially all exterior building applications, including vertical glazing, sloped glazing, overhead glazing and skylights, and also in both vision and spandrel (nonvision) areas.

    Application:

    1. Skylight, storefront, office indoor partition;

    2. Shower door, sliding door, swinging door;

    3. Pool fence, balustrade, balcony;

    4. Dining table, glass furniture;

    5. Window, curtain wall, stairs, glass wall, glass railing;

    6. Splash back, shower screen, glass floor.

    Frequently asked Questions:

    1. OEM/ODM Service

    Our professional R&D dept. can develop different products for different target prices and different requirements.

    2. Free sample service

    Samples can be free but You only need to cover the sample courier fee. Sample which we have in stock, will be sent out within 3 working day.

    OEM sample will be sent out within 7 working days.

    3. Can you do our design?

    Of course, your customized design is available.

    4. Quality control

    We have a strict quality control system, Professional QC team.

    5. What's the universal lead-time for order delivery?

    Formal production:

    10-40 days after PO confirmed and based on the total qty.


    Hot Tags: Insulated Glass, manufacturers, suppliers, factory, Customized

    Thickness:

    5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc

    Max Size:

    3300mm x 10000mm (except for manual production) Min Size: 180mm x 350mm

    Air or argon spacer gap:

    6mm, 9mm, 12mm, 15mm, 16mm etc

    Glass Option:

    Annealed Float glass, Low-E Glass, Tinted Glass, Reflective  Glass, Laminated Glass, Tempered Glass, Silkscreened Glass etc

    Glass Color:

    Clear, Ultra Clear( low iron), light blue, Ford blue, dark blue, ocean blue,  light gray, blue gray, light green, gold, bronze etc.

    Code Compliance:

    GB/T 11944  ASTM C1172  EN1279  JIS R3205  AS/NZS4666
